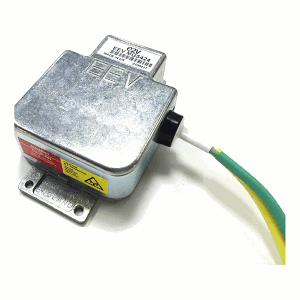

Magnetrón E2V MG5424 X BAND / 25KW

Magnetrón de pulso E2V MG5424 resistente y ligero de frecuencia fija, electricamente igual

al M5187. Banda x 25KW

GENERAL DATA

Electrical

Operating frequency . . . . . 9410 + 30MHz

Typical peak output power . . . . . . 25kW

Cathode . . . . . . . . . . . . indirectly heated

Heater voltage (see note 1) . . . . . . . 6.3V

Heater current at 6.3 V (see note 2) . . . . 0.5A

Cathode pre-heating time (minimum)(see note 3) . . . . . . . . . . 60s

Input capacitance . . . . . . . . . . 9.0 pF max
